Products

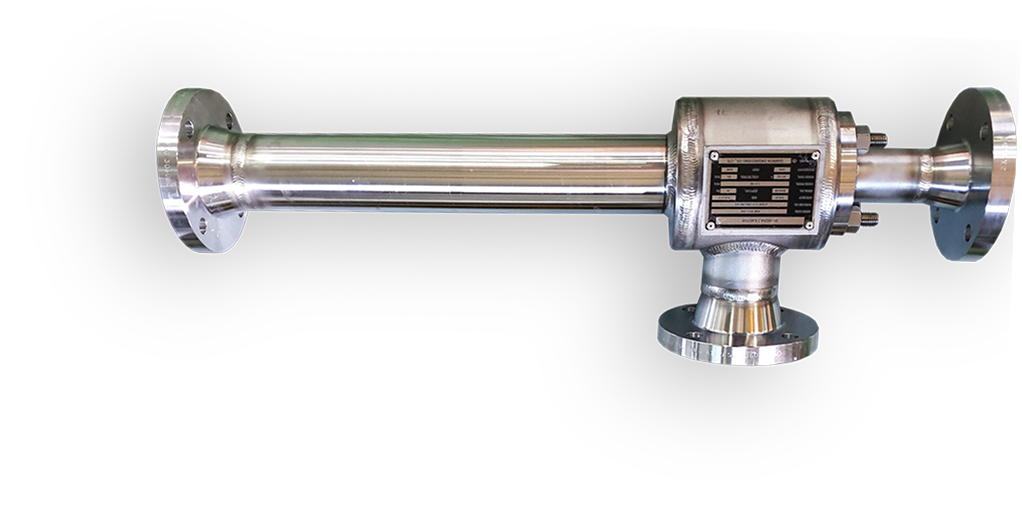

EJECTOR

Steam-jet ejector is a simple and highly versatile type of compressor. Usually applied to create and maintain vacuum in process equipment and test chambers, the ejector can also designed for any suction pressure above atmospheric, as long as a sufficient quantity of steam is available for the job. A further advantage of the ejector is that, it can be made of any material that can be machined.

Products

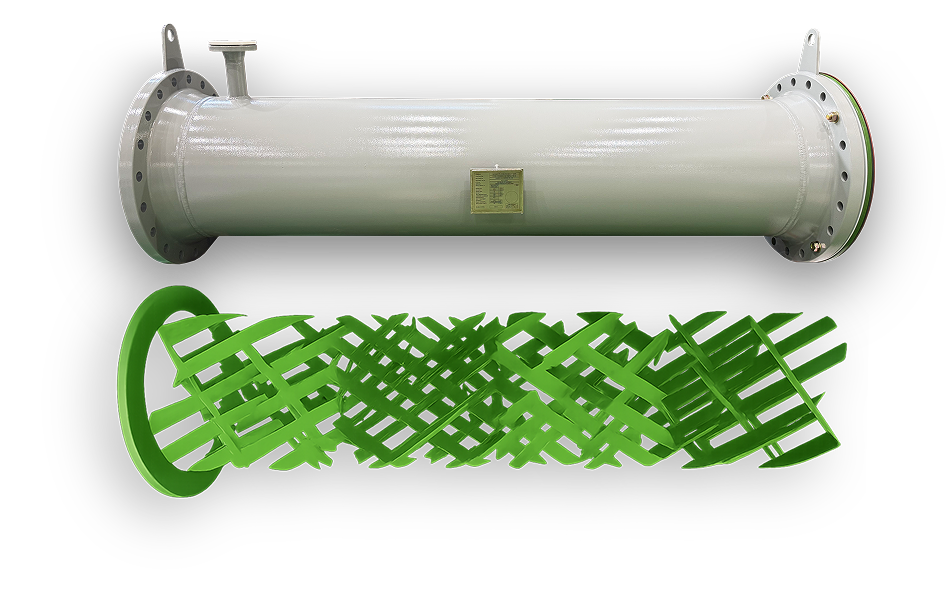

MIXER

Samwon In-line Mixer, with it's blending elements conveniently fixed in the very process pipe, is a most efficient device for continuously stemming and blending one and more materials to be mixed while flowing

Products

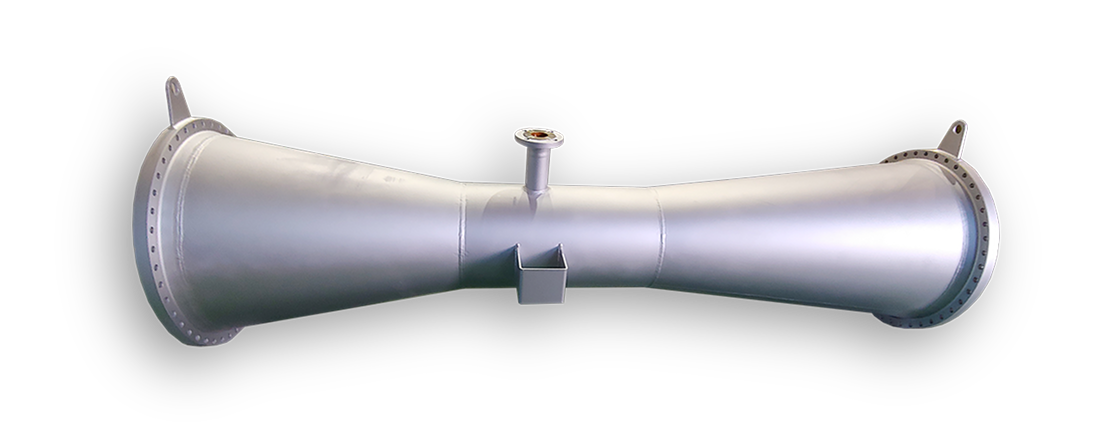

DESUPERHEATER

Desuperheater can be mounted either horizontally or vertically and are normally used for relatively steady load conditions where pressure losses must be minimized. These desuperheaters are a modification of the venturitype unit, without the venturi tail, and offer increased turndown when mounted vertically up. A venturi nozzle type, steam atomizing unit with no separate or high pressure steam supply required. Suitable for use under a wide range of conditions, including steady or variable flows. Inlet water pressure need only equal steam pressure. Small pressure drop across unit. Used with or without controls.
