EJECTOR
About the

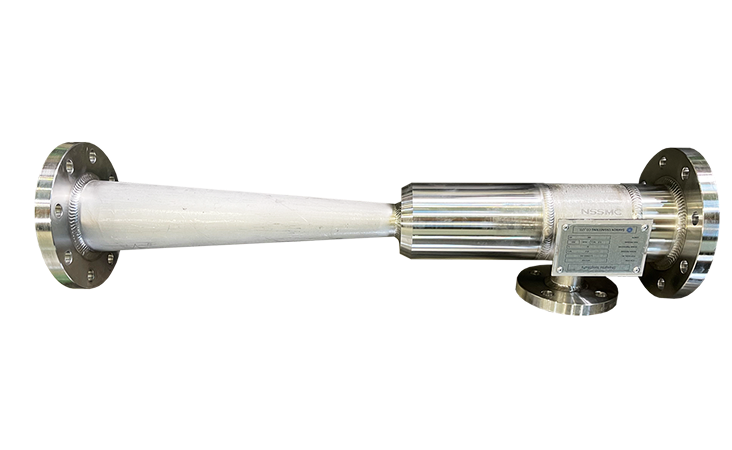

LIQUID JET EDUCTOR
A liquid jet eductor is a type of ejector that uses the energy of pressurized liquid to draw in and mix another liquid, then discharge it. This type of ejector is used for pumping and mixing operations throughout the industry. In most cases, liquid jet eductors use water as the motive medium. Other liquids may be used depending on the application and material compatibility.
Advantage
Capable of Liquid Mixing, Transfer, Dilution, and Suction
- Single unit simultaneously handles suction, mixing, and discharge
- Applicable to various processes, including tank mixing, chemical injection, slurry transfer, and sediment removal
Safe Use with High-Temperature and Corrosive Liquids
- Feasible to be safely used with high-temperature and corrosive liquids depending on material selection
Clog-Resistant Structure
- Simple structure results in virtually no clogging

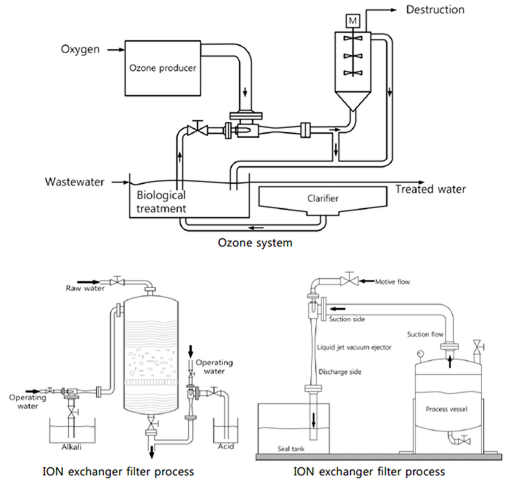

How it works
Use Cases
Chemical Industry
Reactor contents circulation
Water Treatment/Environmental
Chemical injection, sludge transfer
Food/Beverage
Syrup and raw material mixing
Pharmaceutical/Bio
Wash water transfer, raw material mixing
Marine/Offshore Plants
Waste liquid transfer and tank cleaning
Petrochemical/Refining
Tank cleaning and oil recovery
Metal/Semiconductor Industry
Chemical supply for cleaning lines
Agriculture/Agrochemical Industry
Fertilizer and pesticide mixing and injection
Technial Data
